  • FRYER 2 BASKET V-PAN SPLIT GAS, LUUS

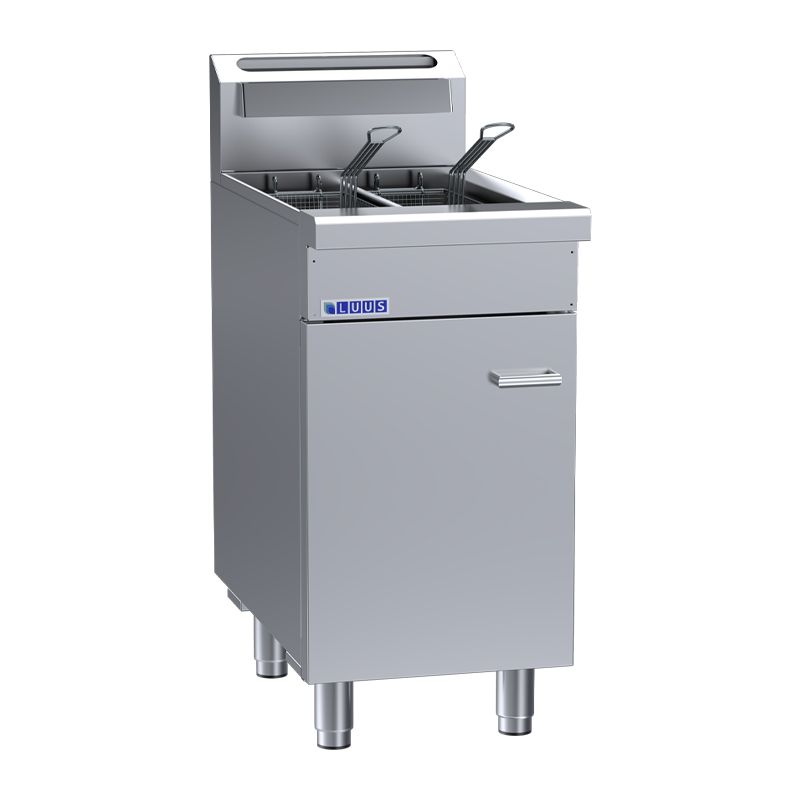

FRYER 2 BASKET V-PAN SPLIT GAS, LUUS

Code:
LU-FSV-45
Stock Level:
From $6.09 per/day
Contact for Pricing

Add To Quote

View Compare List View Enquiry List Go to Checkout

*This item is considered bulky/oversize and additional freight charges may apply.
Please Click Here to view more info on bulky goods.

Specifications
FSV-45FRYER 2 BASKET V-PAN SPLIT GAS, LUUSS

• Easy to clean twin-pan design with cool zone
• Saves space and eliminates cross-contamination
• High performance burners and recovery rates
• Includes 2 x pilots, FFDs, piezos and high temp cutouts
• 32kg/hr production rate
• 2 x 11.5 litre oil capacity
• Cabinet design with internal fryer controls & drains
• Supplied with 2 fryer baskets
• Modular Professional series design

• 2 x 50mj jet burners with pilot, FFD and piezo ignition
• Fenwal thermostat valves with +/- 1° C tolerance
• Thermostat temperature range 150 - 200° C
• High temperature cut-out safety mechanism
• 1.5mm stainless steel stud weld efficient tank design
• 2 x 11.5 litre fry pot capacity
• Includes 2 stainless steel fryer baskets
• 0.9mm stainless steel perforated fish/base plate
• Tank drainage valves at bottom front of unit

Overall Construction
• Heavy duty construction
• 0.9mm 304 stainless steel double-skinned door
• High density Fiberfrax Durablanket insulation around tank
• Welded 1.2mm 304 stainless steel front hob
• Front panels 0.9mm 304 stainless steel
• Side panels 1.2mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Includes stainless steel legs with 55mm adjustable range

Dimensions
• 450mm x 800mm x 1100mm H
• Working height 900mm
• Weight 85kg
• Packed dimensions 640mm x 860mm x 1260mm H
• Packed weight 105kg
Connections
• Gas 3/4” BSP male
• Gas 225mm from right, 55mm from rear, 165mm from floor
• In-built gas regulator (specify Nat or LP on order)
• Drains 1 1/4” BSP male and 170mm in from both left and
right, 200mm from front, 415mm from floor

• 24 month ‘Platinum Warranty CALL LUUS ON 1800 993 168
